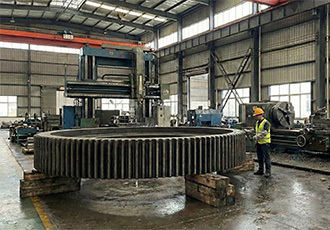

Ball Mill Ring Gear

Customized Cast & Machined Ball Mill Ring Gears – Premium Alloy Steel Main Drive Gears for Continuous Grinding Operations

At Y&J Industries, we deliver precision‑engineered components that power the mining, crushing, and mineral processing industries worldwide. Our portfolio is designed to withstand extreme mechanical stresses, abrasive environments, and heavy dynamic loads, ensuring reliable performance and reduced downtime in the most demanding operations. Within our customized Mining Machinery parts portfolio, the ball mill ring gear is the massive primary drive component mounted on the exterior of the mill shell. Every ring gear is fully customized – cast from premium alloy steel, precision-machined on large-format CNC centers, and finished exactly to your engineering drawings. You define the tooth profile, material grade, and mounting interface; we focus on manufacturing integrity and can provide practical Design for Manufacturability (DFM) feedback to support a high-quality, long-service-life product.

Casting & Precision CNC Machining – Made Exclusively to Your Drawings

All ball mill ring gears we produce are manufactured through a combined process of high-quality casting followed by multi-axis CNC machining on large-scale equipment. Casting delivers a near-net shape with excellent material density and structural soundness, while precision machining ensures the tooth profile accuracy, concentricity, and surface finish essential for smooth, vibration-free operation. Y&J Industries is a Chinese manufacturer specializing in customized heavy-duty components through integrated casting, forging, and machining. For ring gears, casting plus CNC gear cutting and turning is the established production route.

Simply provide your complete engineering definition: 2D drawings (PDF, DWG), 3D models (STEP, IGES), along with your specified alloy steel grade, heat treatment requirements, and any non-destructive testing (NDT) criteria. We faithfully reproduce your ring gear with strict dimensional control and full material traceability. We do not offer gear design services; however, upon request we can review your design from a DFM perspective, offering localized suggestions on casting draft, section transitions, or machining allowances to improve producibility without altering your functional intent. Minimum order quantity is not fixed; it is evaluated case by case based on the specific alloy, process complexity, and gear dimensions. We adapt to your order size, whether a single replacement gear or a multi-unit supply.

Premium Alloy Steel – Engineered for Strength, Fatigue Resistance, and Wear Life

The material for your ring gear is selected entirely by you. We cast and machine the alloy steel grade you specify, chosen for its ability to combine high tensile strength, fatigue resistance, and controlled hardness — all critical for gears operating under continuous, reversing torque loads. Full material certificates are provided for every heat. Additional quality measures available per your specification include:

NDT inspection: Ultrasonic testing, magnetic particle inspection, or radiographic testing of castings to verify internal integrity.

Heat treatment: Normalizing, quench and tempering, or other cycles to achieve required mechanical properties.

Tooth surface treatment: Induction hardening or other localized treatments can be applied to enhance wear resistance of the flank and root areas.

Engineered to Transmit Immense Torque with Stable Meshing and Minimal Vibration

The ball mill ring gear meshes with the drive pinion to transmit the immense torque required to rotate the mill continuously under full charge. Its precision and strength directly affect the mill’s operational smoothness, efficiency, and long-term reliability. By manufacturing each gear strictly to your tooth geometry and tolerance class, we ensure:

Accurate tooth profile and concentricity: Heavy-duty CNC machining maintains tight tolerances, ensuring uniform load distribution across the tooth flank and minimizing vibration or misalignment.

High resistance to tooth breakage and pitting: Premium alloy steel with proper heat treatment delivers the fatigue resistance needed to withstand cyclic loading and occasional overloads.

Stable power transmission: Consistent gear mesh under heavy dynamic loads reduces stress on the pinion, bearings, and drive train, supporting continuous operation.

Because every ring gear is produced exactly to your design, the bolt pattern, flange dimensions, and tooth data integrate seamlessly with your existing mill shell, pinion, and drive system.

Why Y&J Industries for Your Customized Ball Mill Ring Gears?

True build-to-print manufacturing – Each ring gear is cast, heat-treated, machined, and inspected precisely to your approved engineering data.

Large-scale casting and machining capability – We handle thick-section alloy steel castings and final gear cutting with strict process control.

DFM partnership without design interference – We respect your engineering authority while offering targeted manufacturing insights when requested.

No fixed MOQ – Whether a single emergency replacement or a fleet order, we adapt to your requirements.

Global supply – We serve grinding circuit operators, concentrators, and mill OEMs in over forty countries.

Documented quality – Dimensional inspection reports, material certificates, heat treatment records, and NDT reports supplied per your acceptance criteria.

Ready to place your ball mill ring gear design into production? Contact our sales team with your drawings, material specifications, and estimated quantity. Email sales@ynj-industries.com or visit www.ynj-industries.com to request a quotation. We will respond with a feasibility review and detailed pricing.
