We specialize in the manufacture of various customized mechanical parts and components. Water works is one of the most important product lines here at Y&J and we can produce couplings and adaptors, hydrants, pump parts and various valve parts catering to customers' specifications.
With decades' experience in exporting, we have a very good understanding of international customers' needs, especially in North America and Europe. All you need to do is send us your drawings, samples and technical requirements. Our professional manufacturing facilities, experienced quality and engineering team, and bilingual customer service team will work together with you to provide JIT delivery of high-quality products at a competitive price.

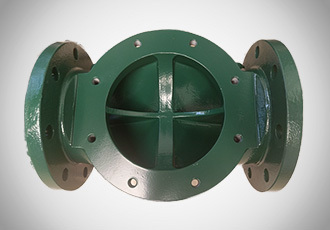

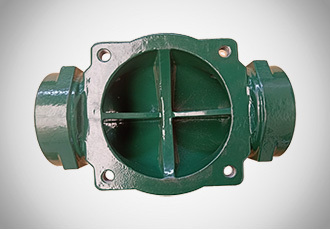

Engineered Structural Base for Fluid Control The customized diaphragm valve body serves as the fundamental load-bearing and fluid-directing structure in diaphragm valve assemblies. Designed for valve OEMs, mechanical system integrators, and engineering procurement teams, this component supports accurate pressure regulation and reliable sealing in process fluid networks. Unlike off-the-shelf castings, this valve body is produced to exact engineering drawings, ensuring dimensional consistency and durability required in high-duty applications. As a core output of a casting manufacturer, the part features robust structure and tailored interfaces for diaphragm elements, bonnet attachments, and actuator connections. These design considerations are essential for maintaining stable cycle performance and minimizing service disruptions in continuous operation environments.
Material Options and Casting Precision This valve body is produced using materials selected based on service requirements, including ductile iron, grey iron, carbon steel, stainless steel, and custom alloys that cater to pressure, corrosion, or thermal demands. Through controlled metal casting services, we manage mold design, gating, and solidification strategy to achieve uniform internal features and wall thickness. Post-casting machining refines sealing seats, flange surfaces, and attachment interfaces to meet tight tolerances. Our integrated metal casting parts workflow includes material traceability, dimensional inspection, and surface preparation, delivering components that integrate seamlessly with diaphragms and actuators according to project specifications.
Application Context and Industrial Value The customized diaphragm valve body is widely applied in liquid processing systems, industrial fluid distribution networks, water treatment facilities, and utility control systems where stable flow control and fluid isolation are required. By sourcing from a casting manufacturer in China with engineering support and quality systems, customers gain components that enhance the reliability and performance of complete valve assemblies. The tailored manufacturing approach improves installation fit-up, reduces modification needs during assembly, and supports predictable performance across diverse operating environments, from corrosive fluids to high-pressure pipelines.
Product Advantages
Structural Optimization Supporting Reliable Cyclic Performance This customized diaphragm valve body undergoes structural design refinement to balance internal stress distribution and fluid dynamics. As a metal casting manufacturer, we optimize geometry, wall thickness, and rib layout based on engineering load cases and flow profiles. The result is a casting with improved resistance to fatigue and deformation under repeated actuation cycles, making it suitable for systems requiring frequent throttling or long-term service stability. This structural advantage also contributes to consistent sealing engagement with the diaphragm and improves overall valve life.
Controlled Casting and Machining Precision Integrating sand casting with CNC machining and strict quality controls ensures that each diaphragm valve body meets engineering expectations for dimensional accuracy and surface finish. Our metal part manufacturing process adheres to documented quality plans that govern melt chemistry, mold integrity, casting cooling, and post-casting operations. Accurate machining of flange surfaces, bolt patterns, and sealing faces avoids on-site modifications and simplifies assembly for OEM line teams or field installers. The advantage lies in reducing assembly cost, improving first-pass acceptance rates, and supporting repeatable procurement quality across batches.
Custom Specification Alignment with Operating Conditions Different projects have unique performance criteria based on fluid type, temperature, and mechanical load. We support custom steel casting, custom stainless steel casting, and tailored material grades to meet these varied conditions. Working with engineering teams early in the design phase enables material selection and surface treatment strategies that align with specific service environments. This level of customization ensures that diaphragm valve bodies operate reliably not only in standard conditions but also in demanding chemical, thermal, and pressure scenarios.
Use Scenarios
OEM Valve Manufacturing and Production Valve manufacturers assembling diaphragm valve products require cast bodies that match design specifications with tight tolerances and repeatability. In this scenario, the customized diaphragm valve body is produced to OEM drawings, enabling consistent production runs and reducing variability between lots. Supported by precision casting manufacturers, this approach improves line efficiency and simplifies downstream assembly with actuators and instrumentation.
Process Engineering for Fluid Distribution Systems Engineering design teams responsible for specifying control systems in water treatment plants, chemical processing units, and utility networks depend on reliable components. Customized parts from a metal casting manufacturer ensure that diaphragm valve bodies conform to precise flow and sealing requirements. This reduces risk during commissioning and supports predictable system performance throughout the project lifecycle.
Field Replacement and Retrofit Operations Maintenance planners and field service engineers often require replacement components that match existing infrastructure specifications. Through collaboration with customized metal parts manufacturers, retrofit diaphragm valve bodies can be fabricated to match legacy dimensions and material requirements exactly. This minimizes installation rework and supports continuity of fluid control performance during maintenance events or system upgrades.
FAQ
What materials can be used for diaphragm valve bodies? We support ductile iron, grey iron, carbon steel, stainless steel, and custom alloy castings based on specific application requirements.
Can diaphragm valve bodies be produced strictly to our drawings? Yes, all valve bodies are manufactured strictly to customer-provided engineering drawings and specifications.
Which casting and fabrication processes are applied? We primarily use sand casting and precision machining, supported by quality inspection and material certification processes.
Do you provide material traceability and inspection reports? Yes, we deliver material certificates and detailed inspection reports with each component.
What information is needed for quoting and production? Please provide detailed drawings, material selections, tolerance expectations, and any special testing or inspection requirements.
