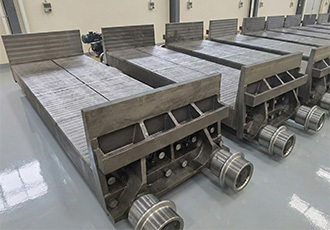

Sinter Pallet Car Assembly – Complete Moving Hearth System
Y&J Industries supplies fully customized sinter pallet car assemblies for sintering machines. Frames, side plates, wheels, axles, and grate bars manufactured via casting, forging, and machining to your exact drawings. No fixed MOQ. Global shipping.
Customized Sinter Pallet Car Assembly – The Core Moving Hearth of Your Sintering Machine
At Y&J Industries, we manufacture precision components and assemblies that form the backbone of modern sintering systems, delivering strength, durability, and efficiency in demanding metallurgical environments. Each part is engineered by you, the customer, and produced by us to withstand extreme thermal and mechanical stresses. Within our customized Mineral Processing parts portfolio, the sinter pallet car assembly is the central moving and load-bearing unit of the sintering machine. Every complete assembly is fully customized – manufactured strictly to your engineering drawings. We do not offer design services; instead, we focus on faithfully producing each constituent part and integrating them into a complete, reliable assembly that matches your specification exactly.
Complete Assembly Built to Your Specifications – Frame, Wheels, Axles, and Grate Bars
The sinter pallet car assembly is the heart of the sintering machine, designed to carry the raw sinter mix and circulate continuously along the rails to complete the full production cycle of ignition, downdraft sintering, cooling, and discharging. A typical assembly – as defined by your design – comprises the frame, side plates, wheels, axles, and grate bars. It provides the structural strength and mechanical reliability needed to handle heavy loads under continuous operation.
Because every assembly is made to order, the configuration, materials, and component details are entirely determined by your technical package. Simply provide your complete drawings (2D PDF/DWG or 3D STEP/IGES models) of the assembly. We then replicate each part using the appropriate manufacturing process:
Cast components (e.g., frame bodies, side plates, grate bars) – produced via sand casting or shell molding in heat-resistant steels or irons per your material callout.
Forged components (e.g., wheels, axles) – hot forged from alloy steels such as 42CrMo or equivalent, then finish-machined for strength and fatigue resistance.
Machined details – critical bores, mounting faces, and interfaces are CNC-machined to your specified tolerances.
We assemble, inspect, and deliver the complete pallet car ready for integration into your sinter strand. Throughout the process we can provide practical Design for Manufacturability (DFM) feedback on individual components – for instance, castability of the frame, forgeability of the wheel blank, or machining access – without altering your functional design intent.
Manufacturing Flexibility and Quality Control
Y&J Industries is a Chinese manufacturer specializing in customized mechanical parts through integrated casting, forging, and machining. For a complex assembly like the sinter pallet car, our in-house capabilities allow us to manage the entire production chain under one quality system:
Material sourcing with full mill test certificate traceability for every cast and forged element.
Process control covering sand casting, shell mold casting, open-die or closed-die forging, and precision CNC machining.
Assembly and inspection to verify that all components fit and function together as designed, with dimensional reports and material certificates supplied per your acceptance criteria.
Minimum order quantity is not fixed – it is evaluated case by case based on the materials, processes, and dimensions of your specific pallet car design. Whether you need a single replacement assembly or a complete set of cars for a new sinter strand, we adapt our production planning accordingly.
Why Y&J Industries for Your Customized Sinter Pallet Car Assembly?
True build-to-print manufacturing – The entire assembly is produced exactly to your design, with no deviations from your approved drawings.
Multi-process capability under one roof – Casting for frames and side plates, forging for wheels and axles, and CNC machining for precision fits, all managed within an integrated workflow.
Component-level DFM support – We review your individual part designs for manufacturability (castability, forgeability, machinability) and provide practical suggestions without compromising your assembly design.
No fixed MOQ – Your order quantity determines our batch planning; we respond flexibly to prototype, replacement, and volume requirements.
Global delivery – We supply sinter plant operators, equipment OEMs, and mineral processing facilities in over forty countries.
Documented quality – Dimensional inspection reports, material certificates, and assembly verification records aligned to your acceptance standards.
Y&J Industries serves as a dependable manufacturing partner for the global sintering and mineral processing sector, turning your pallet car drawings into robust, production-ready assemblies that ensure smooth movement under heavy loads and consistent performance across repeated cycles.
Ready to place your sinter pallet car design into production? Contact our sales team with your complete drawing package, material specifications, and estimated quantity. Email sales@ynj-industries.com or visit www.ynj-industries.com to request a quotation. We will respond with a feasibility review and detailed pricing.
