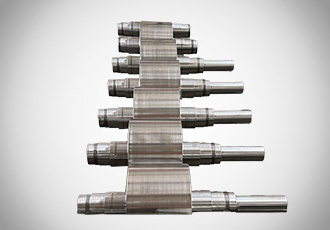

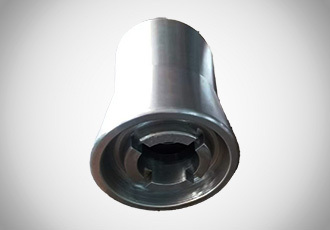

Straightening Roller

Customized Centrifugal Cast or Forged Straightening Rollers – Heat-Resistant Steel with Hardened Surfaces for Demanding Metallurgical Operations

At Y&J Industries, we specialize in manufacturing customized critical components that form the backbone of modern steelmaking and metallurgical operations. Our products are engineered to deliver reliability, durability, and efficiency under the most demanding industrial conditions, ensuring that our customers achieve safe, continuous, and cost‑effective production. Within our customized Steel Mill parts portfolio, the straightening roller is a critical component in continuous caster withdrawal and straightening units, as well as in plate leveling machines. Every roller is fully customized – produced via centrifugal casting or forging from heat-resistant steel, precision-machined on CNC centers, and finished exactly to your engineering drawings or physical samples. You define the geometry, barrel diameter, surface treatment, and material grade; we focus on precision manufacturing and can provide targeted Design for Manufacturability (DFM) feedback to support a reliable, long-service-life product.

Centrifugal Casting or Forging + Precision CNC Machining – Made Exclusively to Your Drawings or Samples

We offer two primary process routes for straightening rollers, selected according to your design and application requirements:

Centrifugal Casting: Ideal for rollers that require a uniform, dense outer working layer with superior wear resistance. The centrifugal process ensures a fine-grain shell free from porosity, which directly enhances thermal fatigue resistance and service life under repeated contact with hot steel.

Forging: When your design demands maximum core toughness and impact strength, open-die or closed-die forging aligns the grain structure, delivering a roller body that can withstand the highest radial pressures without deformation.

Whichever route your design requires, the roller is then precision-machined on large-capacity CNC lathes and machining centers to achieve the exact dimensional tolerances, concentricity, and surface finish your operation demands. Y&J Industries is a Chinese manufacturer specializing in customized mechanical components through integrated casting, forging, and machining. We faithfully reproduce your straightening roller with strict dimensional control and full material traceability. We do not offer roller design services; however, upon request we can review your design from a DFM perspective, offering localized suggestions on barrel diameter-to-length ratios, fillet radii, or hardening patterns to improve manufacturability and performance – without altering your functional intent. Minimum order quantity is not fixed; it is evaluated case by case based on material, process, and roller dimensions. We adapt to your batch size, whether a single replacement roller or a complete set.

Heat-Resistant Steel & Advanced Surface Hardening – Engineered for Thermal Fatigue, Wear, and Pressure

Material selection and surface treatment directly determine the roller's ability to survive the harsh environment of a continuous caster or heavy plate leveler. You specify the exact heat-resistant steel grade; we execute with full traceability:

Heat-Resistant Steel Base Material: Forged or centrifugally cast from grades chosen for their resistance to thermal cracking and oxidation when repeatedly exposed to hot steel (typically 700–1000°C) and cooling water spray.

Specialized Surface Hardening: To combat wear from high-temperature oxide scales, we apply the surface treatment you specify: deep quenching, induction hardening, or weld hardfacing (cladding) on the roller barrel. These treatments create a wear-resistant working surface while the core remains tough and crack-resistant.

High Structural Rigidity: The combination of optimized material, heat treatment, and precision machining ensures the roller can withstand immense radial bending forces without measurable deflection, maintaining the critical flatness and straightness of the product being processed.

Full material certificates and heat treatment records are provided for every roller. Non-destructive testing (ultrasonic, magnetic particle) can be applied per your acceptance criteria.

Critical Performance in Withdrawal, Straightening, and Leveling Operations

Straightening rollers operate at the heart of the quality-control process for long products, slabs, and plates. By faithfully manufacturing each roller to your exact design, we ensure:

Consistent flatness and dimensional accuracy: The roller applies uniform mechanical pressure to unbend cooled steel strands or flatten plates, meeting your product's strict straightness tolerances.

Exceptional thermal fatigue resistance: The combination of heat-resistant steel and your specified hardening treatment minimizes thermal crazing (fire-cracking) caused by cyclic hot-cold contact.

Reduced wear and extended campaigns: A wear-resistant barrel surface maintains its profile longer, reducing the frequency of roller changes and preserving product surface quality.

Reliable integration: Bearing journals, drive couplings, and cooling channel features are machined precisely to your drawings for direct installation into your withdrawal unit or leveling machine.

Because every straightening roller is produced strictly to your design, it integrates seamlessly with your existing roll housings, chocks, and drive systems.

Why Y&J Industries for Your Customized Straightening Rollers?

True build-to-print manufacturing – Each roller is cast or forged, heat-treated, machined, and inspected precisely to your approved engineering data.

Dual process capability – We offer both centrifugal casting and forging under one roof, allowing us to match the manufacturing route to your application needs.

Surface engineering expertise – Hardfacing, deep quenching, and induction hardening are applied in-house, ensuring consistent quality and a single point of accountability.

DFM partnership without design interference – We respect your engineering authority while providing manufacturing insights when requested.

No fixed MOQ – Whether a single pilot roller or a full campaign set, we adapt to your requirements.

Global supply – We serve steel mills, continuous caster OEMs, and metallurgical plants in over forty countries.

Documented quality – Dimensional reports, material certificates, heat treatment records, and NDT reports supplied per your acceptance criteria.

Ready to place your straightening roller design into production? Contact our sales team with your drawings, material specifications, and estimated quantity. Email sales@ynj-industries.com or visit www.ynj-industries.com to request a quotation. We will respond with a feasibility review and detailed pricing.
