We specialize in the manufacture of various customized mechanical parts and components. Water works is one of the most important product lines here at Y&J and we can produce couplings and adaptors, hydrants, pump parts and various valve parts catering to customers' specifications.
With decades' experience in exporting, we have a very good understanding of international customers' needs, especially in North America and Europe. All you need to do is send us your drawings, samples and technical requirements. Our professional manufacturing facilities, experienced quality and engineering team, and bilingual customer service team will work together with you to provide JIT delivery of high-quality products at a competitive price.

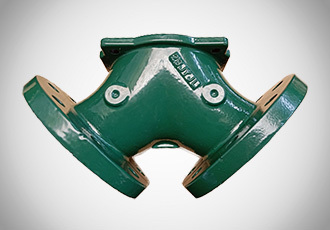

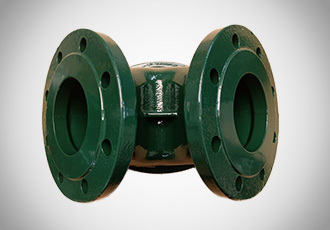

Core Functionality and Engineering Target Users The customized diaphragm valve body is the foundational structural element of diaphragm valve systems, engineered to provide stable flow control and isolation characteristics for fluid process networks. Targeted at mechanical system integrators, industrial OEMs, and control valve assemblers, this valve body supports precise operation in applications involving corrosive or particulate-laden fluids. As a component from a dedicated casting manufacturer, it ensures dimensional accuracy and material integrity that align with diaphragm sealing elements and actuator attachments. The valve body’s role extends beyond basic containment; it sets the mechanical basis for valve performance under varying flow rates and repeated actuation cycles, ensuring that installed systems behave predictably over long service intervals.
Materials, Casting Processes, and Quality Control Our diaphragm valve bodies are manufactured using a range of materials, including ductile iron, grey iron, carbon steel, stainless steel, and other tailored alloys, selected for mechanical strength and corrosion performance relevant to the application. As part of our metal casting services, we utilize controlled mold design and casting methodologies to achieve consistent internal geometry and structural performance. Through precision metal casting parts fabrication, coupled with CNC machining and post-casting inspection, we ensure sealing surfaces, flange interfaces, and bolt patterns conform to engineering specifications. Each body is produced with traceable material certifications and tolerances verified against customer drawings rather than off-the-shelf standard parts.
Application Scope and Operational Value The customized diaphragm valve body finds wide application in wastewater treatment plants, chemical processing systems, potable water networks, and fluid transfer equipment where reliable flow regulation and contamination control are critical. Working with a casting manufacturer in China that specializes in customized metal parts, customers benefit from components that integrate seamlessly into sophisticated automation and control architectures. The structural reliability and manufacturing precision of the valve body enhance overall system uptime, reduce maintenance demands, and support compliance with project-specific performance criteria in demanding operational environments.
Product Advantages
Structural Integrity for Sustained Performance The design of this diaphragm valve body emphasizes mechanical integrity through careful material choice and sectional strength distribution. As a metal casting manufacturer, we optimize wall thickness and internal geometry to resist distortion under pressure cycles, fluid dynamics, and environmental loads. This results in improved operational stability and extended service life compared to standard castings. Enhanced structural robustness also contributes to consistent sealing engagement with diaphragm elements, reducing the risk of leakage or fatigue failures during extended use.
Precision Manufacturing from Casting to Machining Our production integrates sand casting and CNC machining with strict process controls to deliver consistent, high-quality components. Through our metal part manufacturing workflows, each valve body is cast and machined to exact tolerances, ensuring accurate flange alignment, bolt hole positioning, and sealing interface flatness. This comprehensive approach reduces fitment issues during assembly and supports engineered integration with actuators, instrumentation, and piping systems without additional rework, helping OEMs and integrators improve assembly throughput.
Custom Material and Specification Adaptation Different operating contexts demand specific material characteristics. We support custom steel casting, custom stainless steel casting, and tailored alloy solutions based on fluid chemistry, temperature, and pressure conditions. By collaborating with clients early in design review, we provide recommendations on material grades and protective finishes that align with performance expectations and long-term service requirements. This tailored approach enables diaphragm valve bodies to perform reliably across diverse fluid system applications without over-specification that can unnecessarily increase costs.
Use Scenarios
OEM Valve Production and Assembly Valve manufacturers assembling complete diaphragm valve products require bodies that match design specifications precisely. In this scenario, the customized diaphragm valve body is produced to OEM drawings with exact flange interfaces and sealing surfaces. As a casting products manufacturers partner, we support repeatable production batches with consistent quality, enabling OEMs to streamline assembly lines and reduce component variation between lots.
Process Engineering Teams for Fluid Networks Engineering design teams responsible for process fluid systems in chemical, water treatment, and utility sectors rely on precision-cast diaphragm valve bodies for stable operation. Specifying customized parts from a metal casting manufacturer helps ensure that each component meets project-specific mechanical and material criteria. This reduces risk during commissioning and supports predictable performance throughout the project lifecycle.
Maintenance and Retrofit Services for Installed Systems Field maintenance engineers often need replacement valve bodies that fit existing infrastructure without modification. Through collaboration with customized metal parts manufacturers, retrofit valve bodies can be fabricated per legacy specifications with updated material performance where required. This minimizes downtime and ensures continuity of fluid control operations during scheduled service interventions or system upgrades.
FAQ
What materials are available for diaphragm valve bodies? We support a range of materials including ductile iron, grey iron, carbon steel, stainless steel, and custom alloy castings based on application requirements.
Can the valve body be manufactured to our drawings? Yes, all diaphragm valve bodies are produced strictly according to customer-provided engineering drawings and specifications.
Which casting processes are used? Our primary process is sand casting, with CNC machining and surface finishing applied to achieve required tolerances and surface quality.
Do you provide inspection and certification documents? Yes, we supply material certifications and dimensional inspection reports along with the finished components.
What information is needed for quotation and production? Please provide detailed drawings, material specifications, expected tolerances, and any special inspection or testing requirements. We specialize in the manufacture of various customized mechanical parts and components. Water works is one of the most important product lines here at Y&J and we can produce couplings and adaptors, hydrants, pump parts and various valve parts catering to customers' specifications.
With decades' experience in exporting, we have a very good understanding of international customers' needs, especially in North America and Europe. All you need to do is send us your drawings, samples and technical requirements. Our professional manufacturing facilities, experienced quality and engineering team, and bilingual customer service team will work together with you to provide JIT delivery of high-quality products at a competitive price.
