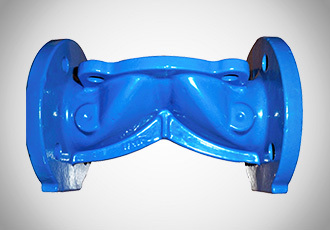

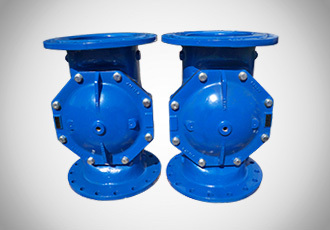

Functional Role in Y-Type Diaphragm Valve Assemblies The customized diaphragm valve body – Y type serves as the primary pressure-bearing and flow-directing structure within diaphragm valve systems. Designed for valve OEMs, engineering contractors, and system integrators, this valve body supports precise flow regulation while isolating operating mechanisms from the process medium. The Y-type geometry enables smoother directional flow with reduced pressure loss compared to straight-body designs, making it suitable for applications requiring stable control and lower turbulence. As a core element in customized metal parts production, the valve body must maintain consistent internal geometry, accurate connection interfaces, and reliable structural strength to ensure predictable diaphragm movement and long-term sealing performance within assembled valve units.
Material Options and Casting Manufacturing Control This diaphragm valve body can be produced using ductile iron casting, grey iron castings, carbon steel, stainless steel, or customized alloys depending on pressure rating, corrosion exposure, and operating temperature. As an experienced casting manufacturer, we apply controlled sand casting and precision mold design to achieve uniform wall thickness and internal structure. Our metal casting services include melt chemistry control, solidification optimization, and post-casting heat treatment to enhance mechanical stability. CNC machining is applied to sealing surfaces, flange faces, and mounting interfaces to ensure compatibility with diaphragms, bonnets, and actuators. Each customized casting metal parts solution is manufactured strictly according to technical drawings rather than standard catalog dimensions.
Application Value in Process and Utility Systems Customized Y-type diaphragm valve bodies are widely applied in fluid distribution systems, water treatment infrastructure, chemical handling lines, and utility process networks where contamination control and pressure stability are essential. By sourcing from a casting manufacturer in China with integrated machining capability, customers receive valve bodies that align precisely with system layouts and assembly requirements. The oblique flow path reduces sediment accumulation and supports consistent operational response, helping operators maintain stable flow control while minimizing maintenance intervention over extended service cycles.
Product Advantages
Y-Type Structural Design for Flow Efficiency The Y-type body structure is engineered to reduce flow resistance and improve pressure distribution across the valve cavity. Compared with traditional straight-pattern bodies, this configuration supports smoother directional changes and minimizes localized stress concentrations. As a metal casting manufacturer, we optimize internal contours during pattern development to ensure structural balance and reliable pressure containment. This design advantage contributes to improved valve response behavior and longer diaphragm service life, especially in systems requiring frequent actuation or continuous operation.
Integrated Casting and Machining Consistency Our production integrates sand casting, precision machining, and inspection under unified quality control. As a supplier of customized metal parts and metal casting parts, we maintain traceability from raw material selection through final dimensional inspection. Controlled machining of flange surfaces, bolt holes, and diaphragm seats ensures accurate assembly with mating components. This consistency reduces installation adjustments, lowers rejection rates during assembly, and supports scalable procurement for valve manufacturers managing multi-project deliveries.
Custom Material Adaptation for Operating Conditions Different operating environments require different material responses. We support custom steel casting, custom stainless steel casting, ductile iron, and grey iron options based on pressure, temperature, and media compatibility. As a valve casting manufacturer, we work closely with engineering teams to adapt material grades and surface treatments to specific system conditions. This tailored approach enables customers to deploy diaphragm valves with confidence across varied applications without overengineering or unnecessary cost escalation.
Use Scenarios
Valve OEM Engineering and Assembly Lines Valve manufacturers integrating diaphragm valve assemblies require body castings that match exact internal geometry and interface tolerances. In this scenario, the customized diaphragm valve body is produced according to OEM drawings, supporting consistent diaphragm seating and actuator alignment. Partnering with a precision casting manufacturer allows OEM teams to stabilize production quality while reducing secondary machining or rework during assembly.
Water Treatment and Utility Infrastructure Projects Engineering consultants and EPC contractors specifying diaphragm valves for water treatment and utility networks prioritize reliability and contamination control. Customized Y-type valve bodies produced through metal part manufacturing processes provide stable flow characteristics and long-term durability. The tailored casting solution supports compliance with project specifications while ensuring compatibility with standardized piping and control systems used in municipal and utility installations.
System Maintenance and Retrofit Programs Maintenance planners managing existing valve networks often require replacement valve bodies that match legacy specifications. Through collaboration with customized metal parts manufacturers, retrofit diaphragm valve bodies can be produced to match original dimensions and material requirements. This reduces downtime, avoids on-site modification, and ensures restored system performance without altering surrounding infrastructure.
FAQ
What materials are available for the diaphragm valve body? Material options include ductile iron, grey iron, carbon steel, stainless steel, and other customized alloys based on operating conditions.
Can the valve body be manufactured strictly to drawings? Yes, all diaphragm valve bodies are produced according to customer-provided drawings and technical specifications.
Which casting processes are used? Sand casting is the primary process, with precision casting available for complex geometries or tighter tolerance requirements.
Do you provide machining and inspection services? Yes, CNC machining, dimensional inspection, and material certification are included as part of our metal casting services.
What information is required to request a quotation? Please provide drawings, material requirements, tolerance expectations, and any project-specific inspection criteria.
