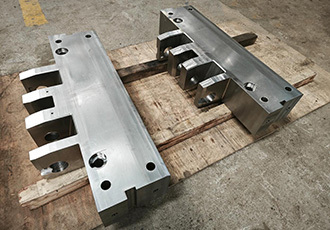

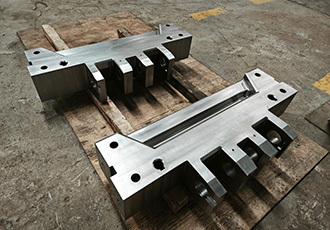

Dummy Bar Head

Customized Forged Dummy Bar Heads – Heat-Resistant Steel Starting Components for Continuous Casting Machines

At Y&J Industries, we specialize in manufacturing customized critical components that form the backbone of modern steelmaking and metallurgical operations. Our products are engineered to deliver reliability, durability, and efficiency under the most demanding industrial conditions, ensuring that our customers achieve safe, continuous, and cost‑effective production. Within our customized Steel Mill parts portfolio, the dummy bar head is a critical starting component that serves as both a temporary mold seal and the primary pulling mechanism during continuous casting. Every dummy bar head is fully customized – hot forged from heat-resistant steel, precision-machined on CNC centers, and finished exactly to your engineering drawings or physical samples. You define the geometry, connection interface, and material specification; we focus on precision manufacturing and can provide practical Design for Manufacturability (DFM) feedback to support a reliable, long-service-life product.

Forging & Precision CNC Machining – Made Exclusively to Your Drawings

All dummy bar heads we produce are manufactured through a dedicated hot forging process followed by multi-axis CNC machining. Forging refines the grain structure and aligns it with the component’s contours, delivering superior fatigue strength, impact toughness, and structural integrity – properties essential for a part that transmits immense pulling forces under cyclic thermal loading. Y&J Industries is a Chinese manufacturer specializing in customized mechanical components through integrated casting, forging, and machining. For dummy bar heads, forging plus CNC machining is the established production route.

Simply provide your complete engineering definition: 2D drawings (PDF, DWG), 3D models (STEP, IGES), along with your specified heat-resistant steel grade, any supplementary heat treatment or coating requirements, and your dimensional inspection criteria. We faithfully reproduce your dummy bar head with strict dimensional control and full material traceability. We do not offer design services; however, upon request we can review your design from a DFM perspective, offering localized suggestions on forging draft, fillet radii, machining allowances, or connection interface robustness to improve producibility and in-service performance – without altering your functional intent. Minimum order quantity is not fixed; it is assessed case by case based on the specific material, forging complexity, and head dimensions. We adapt to your batch size, whether a single replacement unit or a volume production run.

Heat-Resistant Steel – Engineered for Thermal Fatigue Resistance and High Yield Strength

Material selection directly determines the head’s ability to survive repeated hot-cold cycles and heavy loads. You specify the exact heat-resistant steel grade required; we forge, heat-treat, and machine with full traceability:

Heat-Resistant Steel: Selected for its excellent thermal fatigue resistance, maintaining mechanical properties under the extreme temperature swings experienced at the mold exit and through the spray cooling zones.

High Yield Strength: The forged and heat-treated structure ensures the head can withstand the maximum pulling force of the dummy bar chain without permanent deformation.

Dimensional Stability: Precision machining guarantees that the disconnect mechanism functions cleanly every time, ensuring a rapid, reliable separation from the solidified strand.

All materials are sourced with mill test certificates, and additional testing such as ultrasonic or magnetic particle inspection can be performed per your specification.

Critical Functions – Reliable Sealing, Powerful Pulling, and Clean Disconnection

The dummy bar head plays multiple roles that are vital to a successful casting start:

Temporary Mold Seal: It acts as a plug at the bottom of the mold, preventing molten steel from leaking out before the initial shell solidifies.

Fusion and Withdrawal: As the steel partially solidifies, it fuses with the head. The head then transmits the full pulling force from the dummy bar chain to smoothly withdraw the strand through the cooling and containment zones.

Clean Separation: At the end of withdrawal, a reliable disconnect mechanism – machined to your exact design – ensures the head separates cleanly from the strand, ready for the next sequence.

By manufacturing each head strictly to your design, we ensure that these functions are executed reliably, contributing to stable continuous casting operations, reduced downtime, and consistent slab or bloom quality.

Why Y&J Industries for Your Customized Dummy Bar Heads?

True build-to-print manufacturing – Each dummy bar head is forged, heat-treated, machined, and inspected precisely to your approved engineering data.

Forging expertise in heat-resistant steels – We deliver the grain flow, toughness, and fatigue resistance required for high-load, cyclic thermal service.

Complete in-house process chain – Forging, heat treatment, CNC machining, and quality verification managed under one roof.

DFM partnership without design interference – We respect your engineering authority while offering practical manufacturing insights when requested.

No fixed MOQ – Whether a single emergency replacement or a program of continuous supply, we adapt to your needs.

Global supply – We serve steel mills, continuous casting machine OEMs, and metallurgical plants in over forty countries.

Documented quality – Dimensional inspection reports, material certificates, heat treatment records, and NDT records (if required) supplied per your acceptance criteria.

Ready to place your dummy bar head design into production? Contact our sales team with your drawings, material specification, and estimated quantity. Email sales@ynj-industries.com or visit www.ynj-industries.com to request a quotation. We will respond with a feasibility review and detailed pricing.
