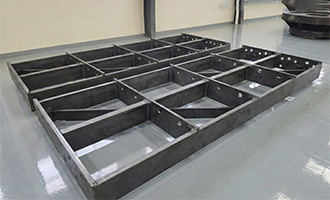

Pallet Car Body / Main Frame Assembly – Welded Structural Skeleton
Y&J Industries supplies customized pallet car bodies (main frame assemblies) for sinter machines. Heavy-duty welded fabrication produced strictly to your drawings. No fixed MOQ. Global shipping.
Customized Welded Pallet Car Body – The High-Strength Structural Skeleton of the Sinter Pallet Car
At Y&J Industries, we manufacture precision components that form the backbone of modern sintering and mineral processing systems, ensuring strength, durability, and efficiency in demanding metallurgical environments. Within our customized Mineral Processing parts portfolio, the pallet car body (main frame assembly) is the primary structural skeleton that supports the grate bars and side plates while maintaining the integrity of the entire pallet car assembly. Every main frame is fully customized – fabricated strictly to your engineering drawings, 3D models. You define the geometry, material specification, and welding details; we focus on precision welded fabrication and can provide practical Design for Manufacturability (DFM) feedback to help bring your design into reliable production.
Heavy-Duty Welded Fabrication – Made Exclusively to Your Drawings
All pallet car bodies we produce are manufactured as welded structural fabrications. This process allows the construction of large, rigid frame assemblies from high-strength steel plates and sections, joined through qualified welding procedures to deliver the load-bearing capacity and thermal endurance required in continuous sintering operation. Y&J Industries is a Chinese manufacturer specializing in customized mechanical components and assemblies through integrated casting, forging, machining, and fabrication. For main frame assemblies, welded fabrication is the primary production route, offering design flexibility and robust structural integrity.
To begin, simply provide your complete engineering definition: 2D drawings (PDF, DWG), 3D models (STEP, IGES), along with your specified material grades for the various frame elements, welding standards to be followed, and any additional heat treatment or non-destructive testing (NDT) requirements. We faithfully reproduce your pallet car body with strict dimensional control, full material traceability, and qualified welding execution. We do not offer design services for the main frame; however, upon request we can review your design from a DFM standpoint, offering localized suggestions on weld joint design, distortion control measures, or assembly sequencing to improve manufacturability without altering your functional intent. Minimum order quantity is not fixed – it is assessed on a case-by-case basis depending on material, fabrication complexity, and overall dimensions. We accommodate your specific batch size.
Engineered to Withstand Extreme Thermal Stress and Heavy Mechanical Loads
This component serves as the main structural skeleton of the pallet car, delivering high-strength support for the grate bars and side plates while ensuring the integrity of the entire assembly. It is engineered to withstand the extreme thermal stress from high operating temperatures as well as the heavy mechanical loads imposed by the raw sinter mix. A properly designed and fabricated main frame maintains its stability without severe thermal deformation, guaranteeing reliable performance under continuous exposure to demanding sintering conditions.
By fabricating your pallet car body exactly to your specification, we help you achieve:
Consistent load transfer from grate bars and burden through the frame to the wheels and rails.
Resistance to warping and cracking despite cyclic heating and cooling during ignition, sintering, cooling, and discharge.
Extended service life with reduced maintenance needs, supporting higher plant availability.
A precise fit with your existing side plate, wheel, axle, and grate bar configurations.
Because every frame assembly is built to your unique design, it integrates directly into your pallet car system and operates seamlessly with your sinter machine's rail and drive setup.
Why Y&J Industries for Your Customized Pallet Car Body?
True build-to-print fabrication – Each main frame is welded and finished precisely to your approved engineering data.
Certified welding expertise – We manage qualified welding procedures, distortion control, and post-weld inspection under one quality system.
Material flexibility – You specify the steel grades and any supplementary requirements; we source with full mill test certificate traceability.
DFM partnership without design interference – We respect your engineering ownership while offering fabrication insights to improve producibility when requested.
No fixed MOQ – Whether a single replacement frame or a full fleet order, we adapt production to your needs.
Global supply – We serve sinter plant operators, equipment OEMs, and mineral processing facilities across more than forty countries.
Documented quality – Dimensional inspection reports, material certificates, weld procedure qualifications, and NDT records (if required) supplied to your acceptance criteria.
Ready to place your pallet car body design into production? Contact our sales team with your drawings, material specifications, and estimated quantity. Email sales@ynj-industries.com or visit www.ynj-industries.com to request a quotation. We will respond with a feasibility review and detailed pricing.
