Rabble Arm

Customized Cast Rabble Arms – Double-Tube Construction in High-Grade Niobium Heat-Resistant Steel for High-Temperature Material Agitation

At Y&J Industries, we manufacture precision components that form the backbone of modern mineral processing and metallurgical systems, ensuring strength, durability, and efficiency under extreme thermal and mechanical stresses. Within our customized Mineral Processing parts portfolio, the rabble arm is the cantilevered structure that connects the central shaft to the outer rabble teeth in multi-hearth roasters. Every rabble arm is fully customized – produced strictly to your engineering drawings or physical samples. You define the geometry, the dual-tube configuration, and the exact Nb-bearing heat-resistant steel grade; we focus on precision manufacturing and can provide practical Design for Manufacturability (DFM) feedback to ensure reliable, long-service-life production.

Precision Casting & Machining of Double-Tube Assemblies – Made Exclusively to Your Design

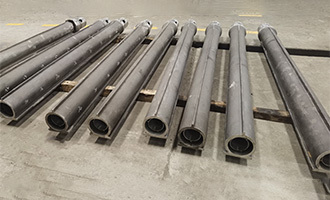

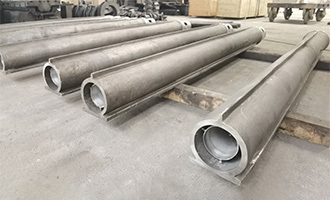

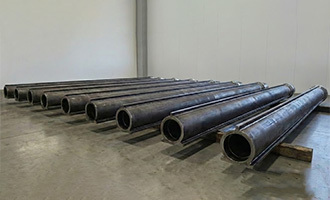

The rabble arm typically features a double-tube construction, consisting of a high-integrity outer casting and an inner pipe, as specified by your design. The outer body is cast from high-grade niobium-containing heat-resistant steel using processes such as sand casting or shell mold casting, selected for its ability to produce the complex, thick-walled shapes required to withstand high-temperature creep and bending. The inner pipe, integrated during assembly, creates a sealed passage for forced circulation of cooling air or water.

Y&J Industries is a Chinese manufacturer specializing in customized mechanical components through integrated casting, forging, and machining. For rabble arms, the manufacturing route combines casting, precision machining of mounting flanges and interfaces, and assembly of the inner cooling pipe. Simply provide your complete engineering definition: 2D drawings (PDF, DWG), 3D models (STEP, IGES), or a physical sample, along with your specified Nb heat-resistant steel grade, cooling passage requirements, and any non-destructive testing (NDT) criteria. We faithfully reproduce your arm with strict dimensional control and full material traceability. We do not offer arm design services; however, upon request we can review your design from a DFM perspective, offering localized suggestions on castability, wall thickness transitions, or cooling channel access to improve producibility and service life – without altering your functional intent. Minimum order quantity is not fixed; it is assessed case by case based on the specific alloy, process complexity, and arm dimensions. We adapt to your batch size.

Engineered to Resist Sagging and Creep Under Combined Thermal, Mechanical, and Gravity Loads

Rabble arms operate suspended inside a furnace at temperatures exceeding one thousand degrees Celsius, driving the sweeping motion of the rabble teeth through the material bed. Your design determines the arm’s cross-section, length, and cooling efficiency; our job is to manufacture it flawlessly. The double-tube construction, combined with high-yield-strength Nb-bearing heat-resistant steel, provides critical protection against the dominant failure modes:

High-Temperature Creep Resistance: Niobium alloying significantly improves the steel’s creep strength, preventing the arm from sagging or bending permanently under the continuous pull of gravity and material resistance.

Effective Cooling for Structural Integrity: Forced circulation of air or water through the inner pipe, as designed by you, removes heat from the arm body, keeping the material temperature within a range where it maintains its mechanical properties and resists oxidation.

Reliable Load Transfer: The arm transmits torque from the central shaft to the teeth without excessive deflection, maintaining the correct tooth pitch angle and ensuring uniform material agitation across the hearth.

By faithfully replicating your design, we ensure that each rabble arm performs reliably, extending maintenance intervals and supporting consistent product quality in demanding roasting or calcining operations.

Why Y&J Industries for Your Customized Rabble Arms?

True build-to-print manufacturing – Each arm is cast, machined, and assembled precisely to your approved engineering data.

High-grade Nb heat-resistant steel expertise – We handle the casting and heat treatment of niobium-alloyed grades, ensuring the specified high-temperature strength and creep resistance.

Double-tube assembly capability – We manage the casting, machining, and integration of the inner cooling pipe under one quality system, ensuring a leak-tight, functional assembly.

DFM partnership without design interference – We respect your engineering authority while providing targeted casting and machining insights when requested.

No fixed MOQ – Whether a single replacement arm or a full furnace set, we adapt to your requirements.

Global supply – We serve multi-hearth roaster operators, mineral processors, and OEMs in over forty countries.

Documented quality – Dimensional inspection reports, material certificates (including chemical composition and mechanical properties), and NDT records supplied per your acceptance criteria.
