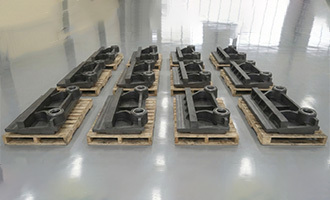

Wheel Bracket / Axle Support Bracket

Customized Sand Cast Wheel Brackets – High-Grade Ductile Iron Load-Bearing Connectors with Sealing Function for Sinter Pallet Cars

At Y&J Industries, we manufacture precision components that form the backbone of modern sintering and mineral processing systems, delivering strength, durability, and efficiency in demanding metallurgical environments. Each part is produced strictly to your engineering definition. Within our customized Mineral Processing parts portfolio, the wheel bracket (axle support bracket) is a key load-bearing transitional component located at both ends of the pallet car. It connects the main frame to the wheel axles while also performing a critical air-sealing function between adjacent cars. Every wheel bracket is fully customized – sand cast from high-grade ductile iron, CNC machined, and finished exactly to your drawings or physical samples. You define the geometry and material grade; we focus on precision manufacturing and can provide practical Design for Manufacturability (DFM) insights to support reliable, long-lasting production.

Sand Casting in High-Grade Ductile Iron with CNC Machining – Made Exclusively to Your Design

All wheel brackets we produce are manufactured through a combined process of sand casting followed by precision CNC machining. The base material is high-grade ductile iron (spheroidal graphite iron), chosen for its excellent combination of strength, toughness, and fatigue resistance – essential for components that transmit heavy loads while exposed to elevated temperatures and cyclic stresses. Y&J Industries is a Chinese manufacturer specializing in customized mechanical parts through integrated casting, forging, and machining. For pallet car wheel brackets, sand casting provides the near-net shape and material soundness required, while CNC machining centers deliver the final dimensional accuracy, bore tolerances, and mounting surface finishes your design demands.

Simply provide your complete engineering definition: 2D drawings (PDF, DWG), 3D models (STEP, IGES), or a physical sample. Include your specified ductile iron grade (e.g., GJS-500-7, GJS-600-3, or equivalent), any additional heat treatment requirements, and dimensional inspection criteria. We faithfully reproduce your bracket with full material traceability and documented quality control. We do not offer design services; however, upon request we can review your design from a DFM standpoint, offering localized suggestions on draft angles, fillet radii, or machining stock to improve castability and machinability without altering your functional intent. Minimum order quantity is not fixed – it depends on material, process, and bracket dimensions. We adapt to your specific order size.

Dual Function – Structural Load Transfer and Inter-Car Air Sealing

These key load-bearing transitional components serve two essential roles on the sinter pallet car:

1. Structural Connection– The wheel bracket connects the main frame to the wheel axles, providing the strength and rigidity needed at both ends of the pallet car. It transmits the entire weight of the car, grate bars, hearth layer, and sinter mix to the wheels and rails, maintaining structural stability under heavy loads and continuous operation.
2. Air Sealing– Beyond its mechanical function, the bracket also acts as a critical sealing element between adjacent pallet cars. By forming a tight inter-car seal, it prevents air leakage during the downdraft sintering process. This ensures that the process air is drawn efficiently through the material bed rather than escaping between cars, maintaining proper ignition, consistent sintering performance, and uniform product quality.

By combining strength, precision, and an integrated sealing geometry, the wheel bracket safeguards operational reliability and contributes directly to the overall efficiency and productivity of the sintering machine. Because every bracket is cast and machined exactly to your design, the sealing interfaces, axle bore positions, and mounting bolt patterns integrate seamlessly with your existing pallet car frame and wheel assemblies.

Why Y&J Industries for Your Customized Wheel Brackets?

True build-to-print manufacturing – Each wheel bracket is sand cast, machined, and inspected precisely to your approved engineering data.

High-grade ductile iron expertise – We routinely cast and machine ductile iron grades to meet demanding strength and elongation requirements.

Integrated sand casting and CNC machining – Near-net shape casting combined with precision machining ensures repeatable dimensional accuracy and surface finish.

DFM partnership without design interference – We respect your engineering ownership while providing casting and machining insights when requested.

No fixed MOQ – Whether you need a single replacement bracket or a full fleet set, we adjust production to your quantity.

Global supply – We serve sinter plant operators, equipment OEMs, and mineral processing facilities across more than forty countries.

Documented quality – Dimensional inspection reports, material certificates (including mechanical properties), and visual acceptance per your criteria.

Ready to have your wheel bracket design cast and machined with precision? Contact our sales team with your drawings, material specifications, and estimated quantity. Email sales@ynj-industries.com or visit www.ynj-industries.com to request a quotation. We will respond with a feasibility review and detailed pricing.
